SchaevitzR instrumentation for AC-operated LVDTs and gageheads eliminates compatibility problems for signal conditioning with your SchaevitzR LVDTs. Instrumentation performs excitation, amplification, demodulation, signal modification and readout/control. Applications include test stands and manufacturing systems.

Model

Digital Display

Output

Special Features

Click on a model number to bring up the PDF datasheet

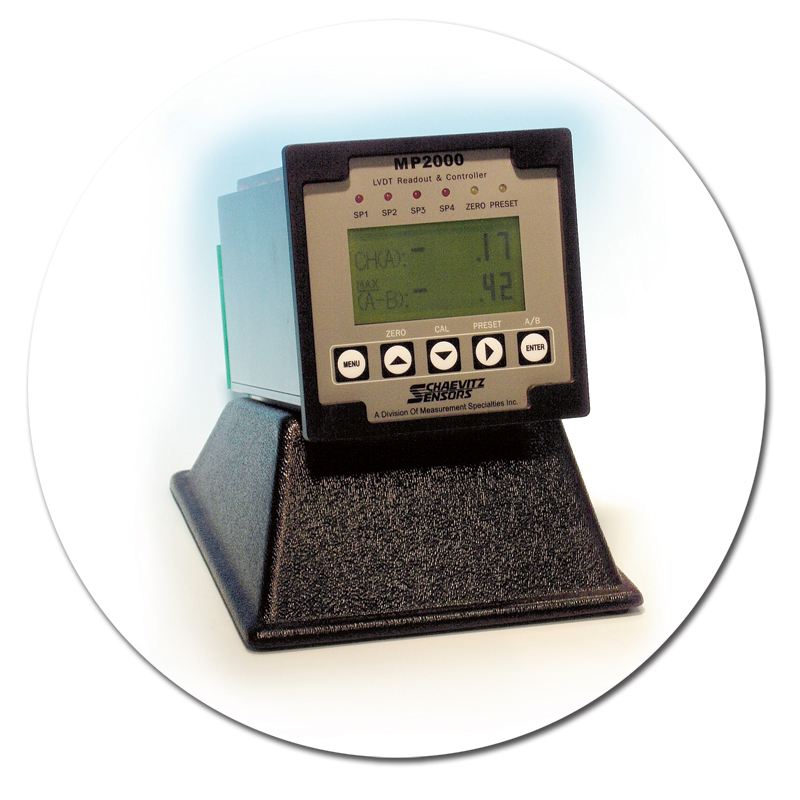

MP 2000			Yes	Analog voltage & RS232C	Dual channel, set point

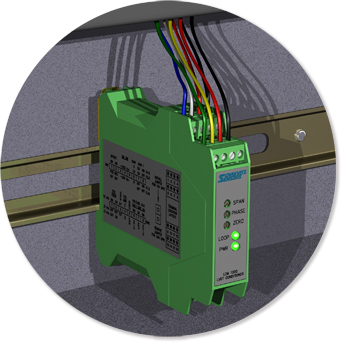

LDM-1000			No	Analog voltage & 4-20mA	Din rail mountable
PML-1000			Yes	Analog voltage & RS485	Single channel

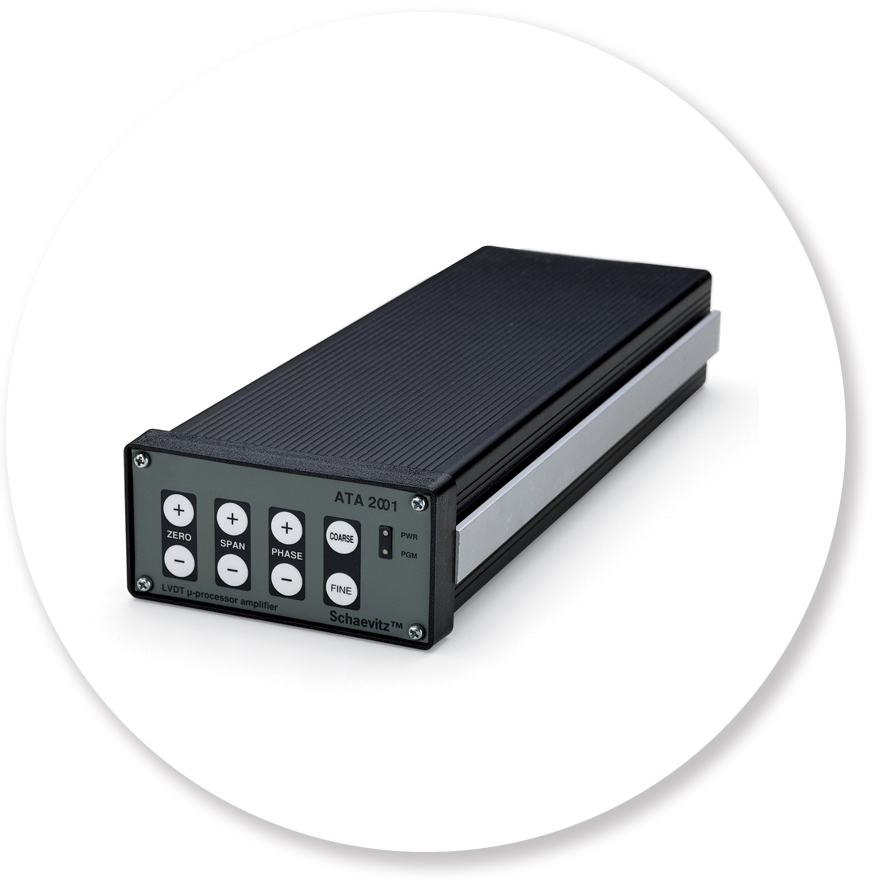

ATA 2001			No	Analog voltage & 4-20mA	Laboratory grade

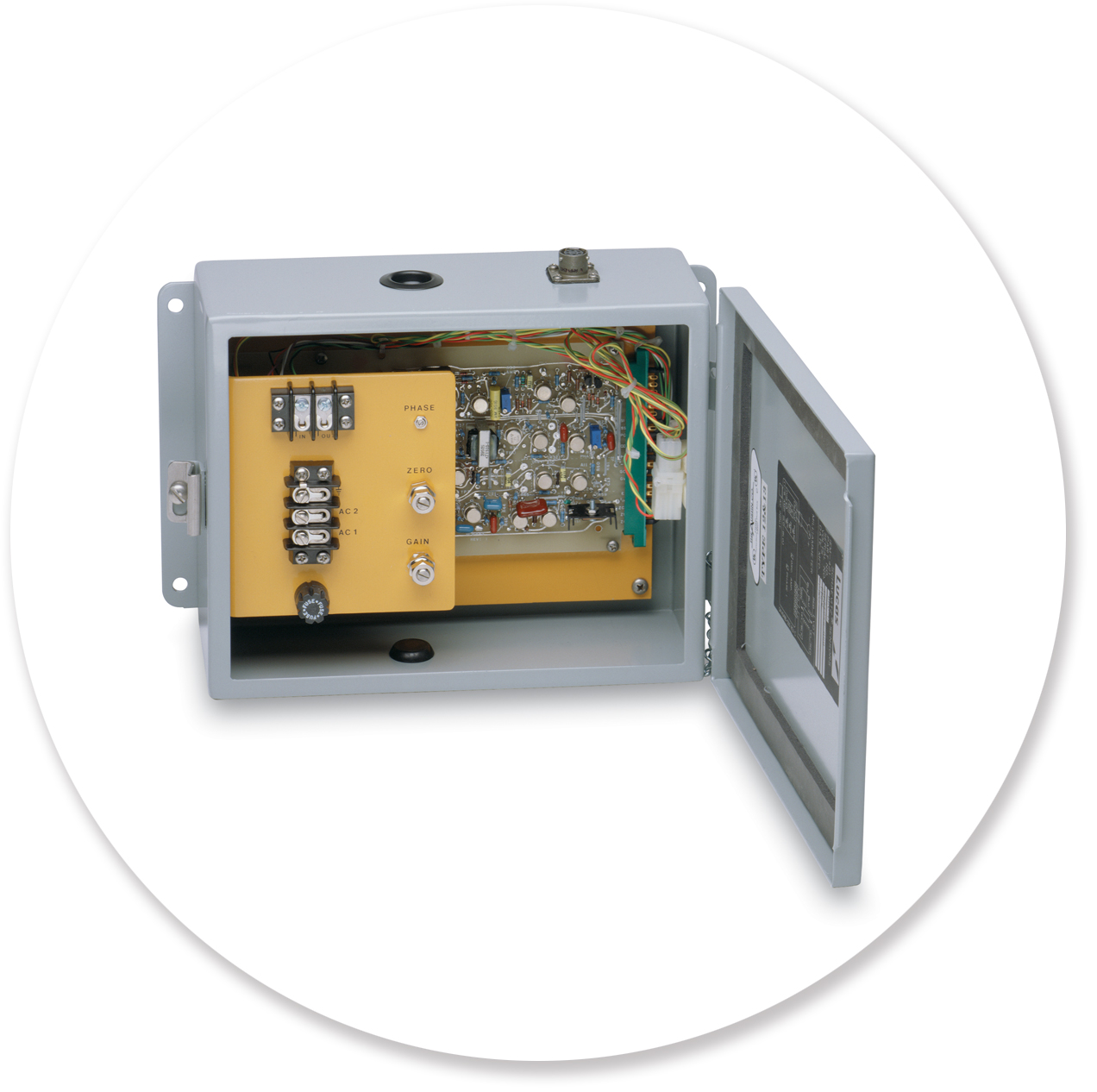

IEM-422			No	Analog voltage & 4-20mA	Industrial enclosure

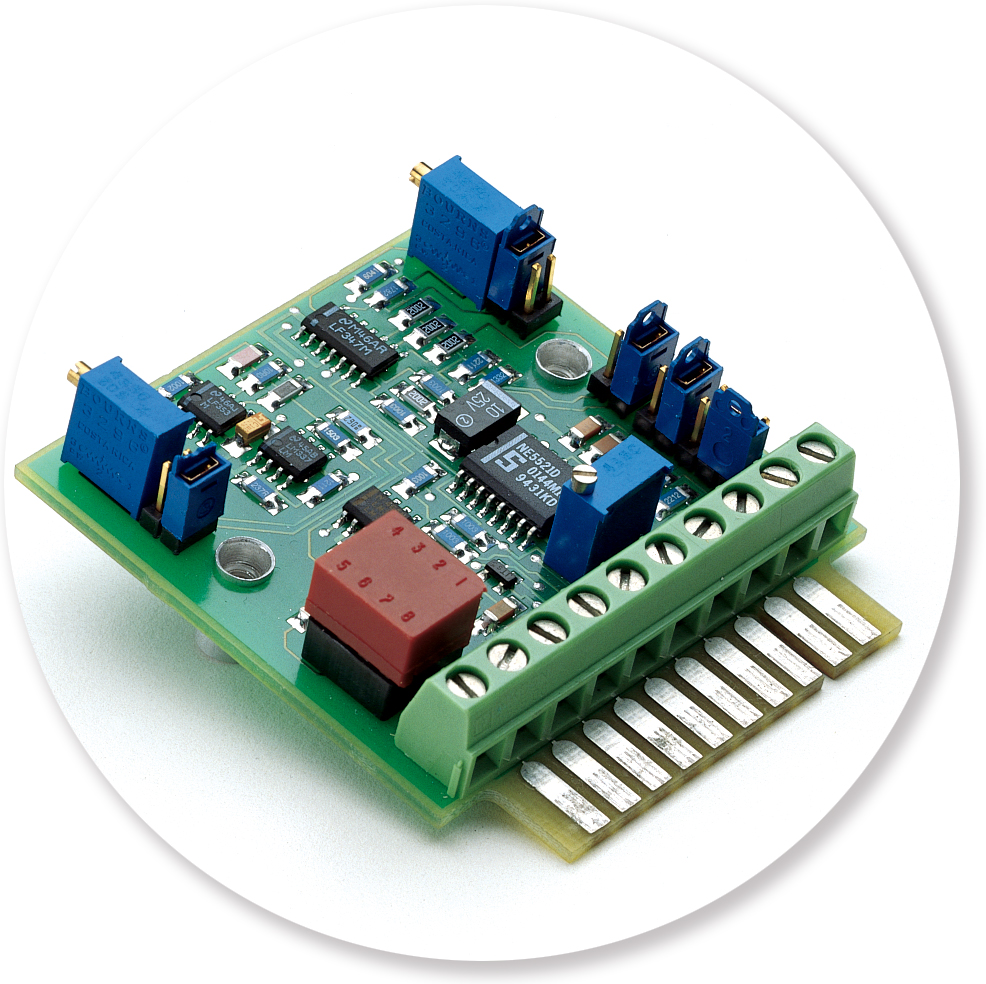

LVM-110			No	Analog voltage	Low cost

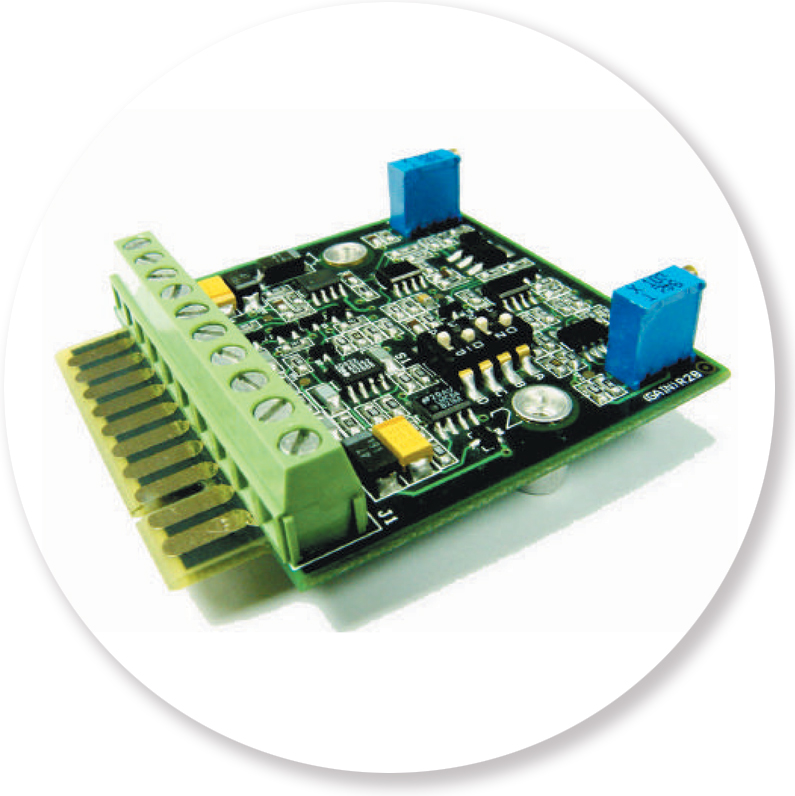

LiM 4-20 LVDT Series			No	4-20mA	Low cost 4-20mA
